Description

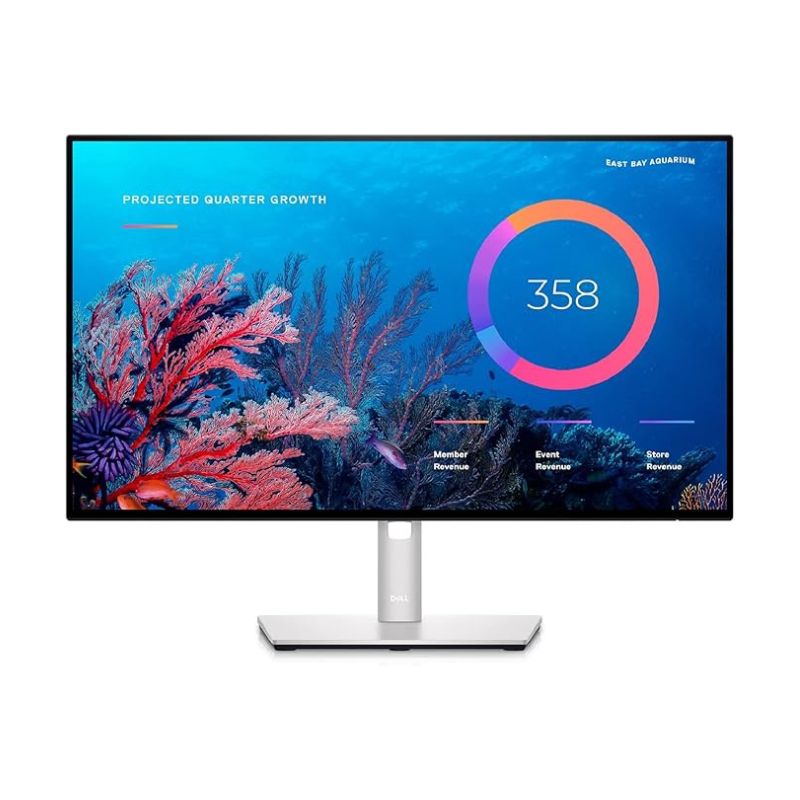

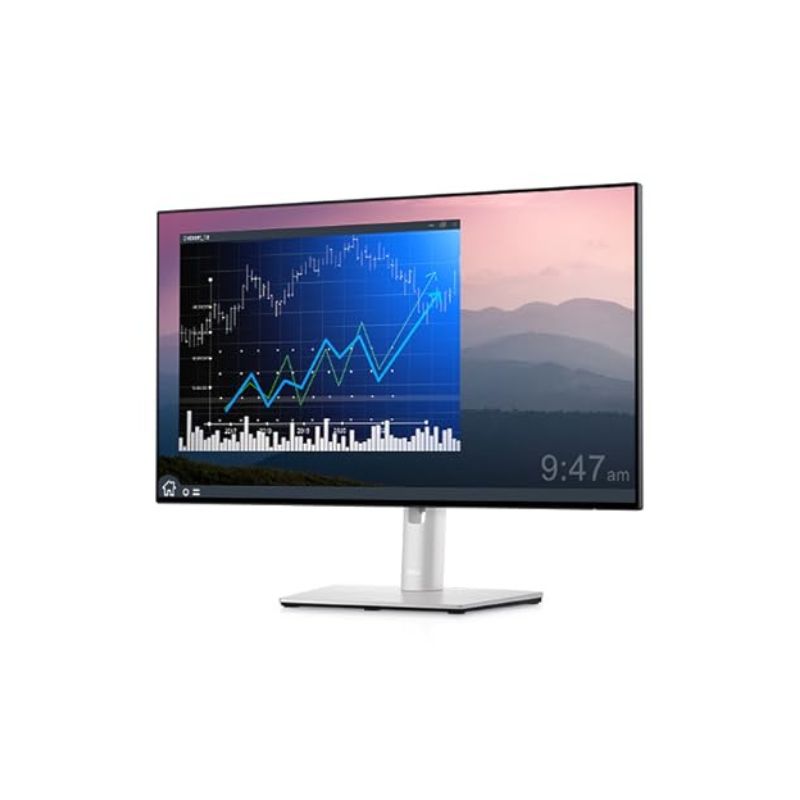

Dell UltraSharp 24 USB-C Hub Monitor – U2422HE

• HDMI
• DisplayPort 1.4
• DisplayPort output (MST)
• USB-C 3.2 Gen 2 upstream
• USB-C downstream (power up to 15W)
• 3 x USB 3.2 Gen 2 downstream
• USB 3.2 Gen 2 downstream with Battery Charging 1.2
• Audio line-out
• USB-C 3.2 Gen 2 upstream/DisplayPort 1.4 (DisplayPort 1.4 mode / power up to 90W)
• Network (RJ-45)

• Here’s a detailed and richly illustrated overview of the Dell UltraSharp 24 USB-C Hub Monitor (U2422HE) — a highly functional and elegantly designed monitor that serves as a productivity powerhouse, especially for hybrid office setups.

  ---

  Key Specifications & Features

  • Display

    • Size: 23.8″ (24″) IPS panel

    • Resolution: Full HD — 1920 × 1080 at 60 Hz

    • Brightness: ~250 cd/m²

    • Contrast Ratio: 1000:1 (dynamic also 1000:1)

  • Color & Viewing

    • Color Coverage: 100% sRGB, 100% Rec.709, and 85% DCI-P3

    • Viewing Angles: 178° horizontal / vertical

  • Performance

    • Response Time: 8 ms (normal), 5 ms (fast)

    • Blue Light: Always-on ComfortView Plus (TÜV-certified, flicker-free)

  • Connectivity & Hub Functionality

    • USB-C (upstream): Supports DP Alt-mode and up to 90 W Power Delivery

    • USB-C (downstream): 15 W charging

    • Additional Ports: DisplayPort 1.4 in/out for daisy-chaining, HDMI, 3× USB-A 3.2 Gen 2 (incl. one with BC1.2 fast charging), audio line-out, RJ45 Ethernet

    • Productivity Hub: Includes Wake-on-LAN, PXE Boot, MAC Address Pass-through, KVM switching ability

    • Power Button Sync: Turn on your connected PC and monitor simultaneously via monitor button (compatible Dell PCs)

  • Design & Ergonomics

    • InfinityEdge 3-sided bezel for multi-monitor setups

    • Adjustable: tilt, swivel, pivot, and 150 mm height adjustment

    • Build: Platinum silver finish, cable management through riser, joystick navigation for OSD

  • Eco & Support

    • Made from 85% PCR (post-consumer recycled) plastic

    • Certifications: ENERGY STAR, EPEAT Gold, TCO

    • Warranty: 3-year limited, plus Dell Premium Panel Exchange (one bright pixel qualifies for replacement)

  ---

  Additional Insights & Reviews

  • TFTCentral notes that the U2422HE builds upon the already solid U2422H by adding USB-C hub, Ethernet, and KVM features, making it ideal for modern office environments

  • DisplaySpecifications confirms precise panel metrics including brightness, resolution, and viewing angles

  • Dell Official Site reiterates the ergonomic, connectivity, and color fidelity strengths of this monitor as a productivity-enhancer.

  ---

  Why It Stands Out for Professionals

  • One-Cable Workspace Simplified: Power your laptop, connect via USB-C, connect to Ethernet, and use peripherals through the monitor — all without cable clutter.

  • High Productivity Features: KVM allows seamless control of two PCs with one keyboard and mouse, plus network functions like PXE/WOL are built in — ideal for IT-managed or hybrid environments.

  • Visual Comfort Meets Accuracy: Accurate color coverage, low blue-light tech, and adjustable ergonomic stand make it pleasant for long work sessions.

  • Sustainable & Reliable: Eco-friendly materials and Dell’s premium panel support give confidence in both environmental responsibility and durability.

  ---

  Quick Summary Table

  Feature Group	Highlights
  Display	23.8″ IPS, FHD, 100% sRGB / 85% DCI-P3
  Eye Comfort	ComfortView Plus, flicker-free
  Connectivity Hub	USB-C (90 W PD), RJ45, HDMI, DP in/out, USB-A, audio out
  Productivity Tools	Wake-on-LAN, KVM, power-button sync, PXE, MAC pass-through
  Ergonomics	Height, pivot, swivel, tilt adjustable stand
  Green Design	85% recycled plastic, ENERGY STAR/EPEAT certified
  Warranty	3-year advanced exchange, pixel panel protection
