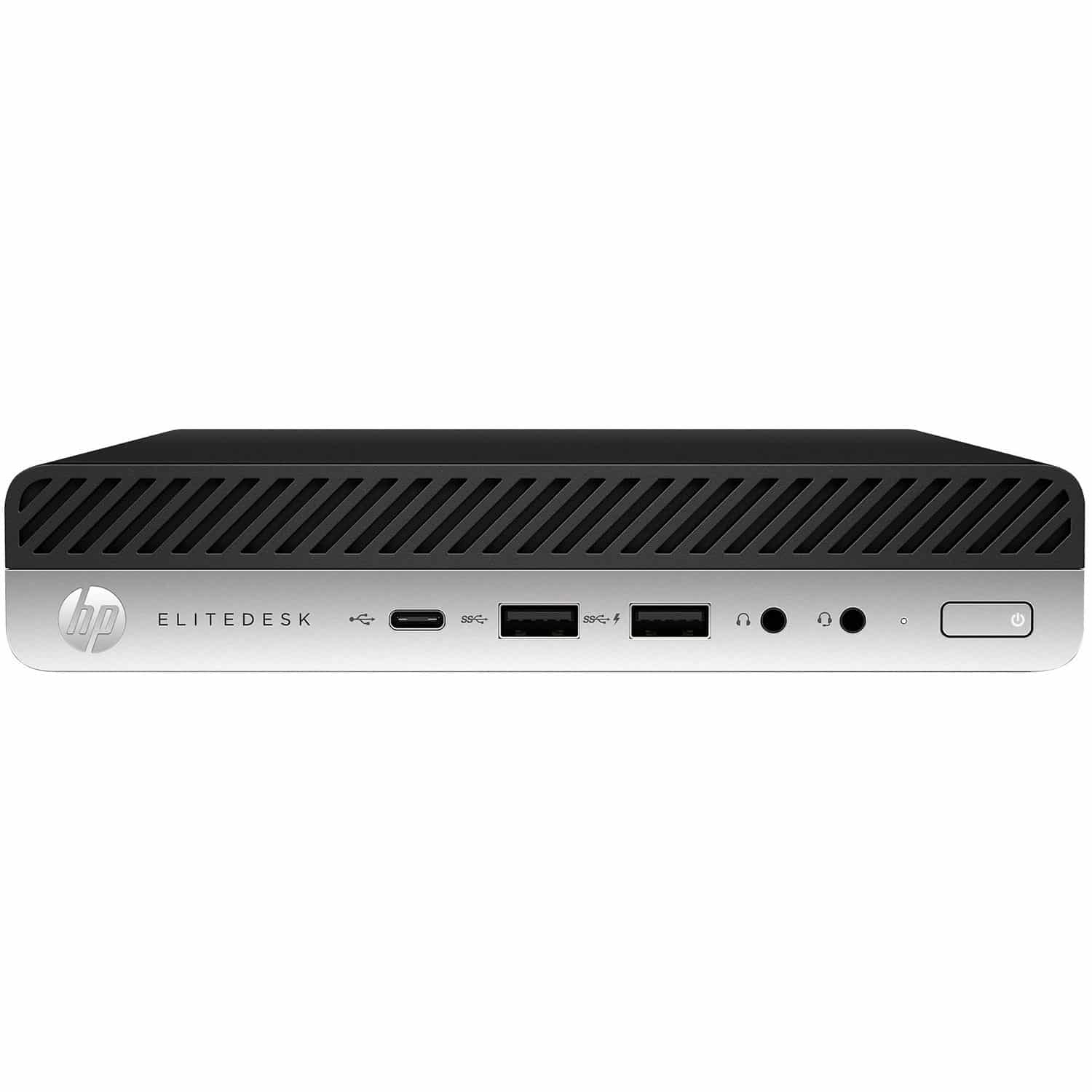

HP EliteDesk 800 G4 Intel Core i5 8th Gen 16GB RAM 256GB SSD Desktop Mini PC

Deploy a PC built for the enterprise with 8th Gen Intel® Core™ processors. The HP EliteDesk 800 G4 Desktop Mini has performance, reliability, and expandability for today’s workforce in a stylish and versatile design.

Features

Streamlined for a clean workspace
Take your footprint down to near zero with a PC that mounts behind and is powered by an HP EliteDisplay. Place it almost anywhere with HP Desktop Mini accessories. Reduce connection clutter with a single short USB-C™ cable and rear I/O ports.

Meet the mighty Mini
Create panoramic views of static and dynamic imagery on up to 7 daisy-chained displays from one PC. Transfer data fast with an optional Thunderbolt™ card. Expand even more with options like Intel® Optane™ memory or an M.2 SSD PCIe Drive.

Enhanced data and device security
Get a highly secure PC with the self-healing protection of HP Sure Start Gen4. Integrate into the most secure network infrastructures with an optional fiber network adapter. Store and lock your Mini and power cord in the optional HP Lock Box.

Expansion that extends your investment
Maximize PC life as your business needs change with an optional serial port for legacy devices; VGA, HDMI, Display Port™ or USB-C™ DisplayPort™ Alt-Mode for displays; USB-C™ Power to draw power or Thunderbolt™ for fast connections.

Technical Specifications

Operating system: Windows 10/11 Pro 64-Bit Edition
Memory: 16GB DDR4 – 2666 MHz SDRAM | up to 32GB
Memory Slots: 2x SODIMM
Storage: 256GB PCIe® NVMe™ SED Opal 2 TLC M.2 SSD

Optical drive: None
Chipset: Intel® Q370 (vPro)
Graphics: Integrated: Intel® UHD Graphics 630

Processor: Intel® Core™ i5-8500T (2.1GHz base frequency, up to 3.5GHz with Intel® Turbo Boost Technology, 9 MB cache, 6 cores) supports Intel® vPro™ Technology
Processor Family: 8th Generation Intel® Core™ i5 processor

Ports: Front: 1x external antenna connector | 1x power connector | 1x RJ-45 | 2x DisplayPort™ 1.2 | 2x USB 3.1 Gen 1 | 2x USB 3.1 Gen 2
Back: 1x USB 3.1 Gen 1 (charging) | 1x USB 3.1 Gen 2 | 1x USB 3.1 Type-C™ Gen 2 | 1x headphone | 1x headset connector
Optional: 1x DisplayPort™ 1.2 | 1x HDMI 2.0 | 1x serial | 1x USB 3.1 Type-C™ Gen 1 (DisplayPort™) | 1x USB 3.1 Type-C™ Gen 1 (Power Delivery, DisplayPort™) | 1x USB 3.1 Type-C™ Gen 2 (with Thunderbolt™) | 1x VGA

Expansion Slots: 1x M.2 2230 | 2x M.2 2230/2280 (1 M.2 slot for WLAN and 2 M.2 2230/2280 slot for storage.)

Bays: One 2.5″ HDD

Audio: Conexant CX20632 codec, universal audio jack, headset and headphone front ports (3.5 mm), multi-streaming capable

Wired Protocol: Integrated Intel® I219LM GbE LOM
Wireless Protocol: Intel® Dual Band Wireless-AC 9560 Wi-Fi 5 (2×2) and Bluetooth® 5 M.2, vPro™

AC Adapter: Input: 150 W external power adapter, up to 89% efficiency, active PFC

Software: Absolute Persistence module | HP Hotkey Support | HP Noise Cancellation Software | HP Support Assistant | Native Miracast Support | HP Wireless Wakeup | Buy Office (sold separately) | HP Sure Recover | HP JumpStarts

Security Management: DriveLock | Hood sensor | HP BIOSphere | HP Client Security Suite Gen 4 | HP Password Manager | HP Power On Authentication | HP Sure Run | HP Sure Start Gen4 | Intel® Identity Protection Technology (Intel® IPT) | Parallel enable/disable (via BIOS) | Power-on password (via BIOS) | RAID configurations | Removable media write/boot control | SATA port disablement (via BIOS) | Serial enable/disable (via BIOS) | Setup password (via BIOS) | Support for chassis padlocks and cable lock devices | Trusted Platform Module TPM 2.0 Embedded Security Chip shipped with Windows 10 (Common Criteria EAL4+ Certified)(FIPS 140-2 Level 2 Certified); USB enable/disable (via BIOS)

Management features: HP BIOS Config Utility (download) | HP Client Catalog (download) | HP Cloud Recovery | HP Driver Packs (download) | HP Management Integration Kit for Microsoft System Center Configuration Management Gen 2 | HP System Software Manager (download) | Intel® vPro™ Technology | Ivanti Management Suite

Environmental: Low halogen
Energy Efficiency Compliance: ENERGY STAR® certified; EPEAT® 2019 registered where applicable

Model: HP EliteDesk 800 35W G4 Desktop Mini PC
Form Factor: Desktop Mini PC

Dimensions (W x D x H): 17.7 cm x 17.5 cm x 3.4 cm
Weight: 0.96 kg (2.11 lbs)
